Tu 1792 - 4307 NmDiameter 485 mm
QMT-HA 485 series
The new benchmark for Machine Tooling
If you have a technical question, please contact our application engineers.
Product filter
Linear, torque, and vacuum rated drive solutions
Find the best motor according to your application criteria. Select a product type and choose relevant values based on your motion need, to filter the most suitable motor.
Tu 1115 - 2678 NmDiameter 385 mm
QMT-HA 385 series
Maximum efficiency with more torque
Tu 1094 - 3585 NmDiameter 485 mm
QMT-LA 485 series
Biggest size, lighter weight
Tu 680 - 2229 NmDiameter 385 mm
QMT-LA 385 series
Upgrade to more performance
Tu 347 - 1162 NmDiameter 310 mm
QMT-LA 310 series
Proven performance across many applications
Tu 155 - 519 NmDiameter 230 mm
QMT-LA 230 series
Lightweight power for dynamic applications
Tu 1651 - 2202 NmDiameter 485 mm
QTL 485 series
Big torque motors with space-saving electromagnetic design
Tu 1026 - 1368 NmDiameter 385 mm
QTL 385 series
Efficient design scaled up for even higher torque demands
Tu 389 - 778 NmDiameter 310 mm
QTL 310 series
With integrated cooling channels to reach very high continuous torque
Tu 389 - 778 NmDiameter 290 mm
QTL 290 series
Ready for highly dynamic movements in machine applications.
Tu 173 - 346 NmDiameter 230 mm
QTL 230 series
With integrated water cooling to reach very high continuous torque
Tu 173 - 346 NmDiameter 210 mm
QTL 210 series
The smallest QTL motor with higher torque than the QTR series
Tu 9.3 - 244.8 NmDiameter 160 mm
QTR 160 series
Power and size combined to replace large factory machinery
Tu 5.6 - 55.4 NmDiameter 133 mm
QTR 133 series
High peak force with a large range of options
Tu 2.9 - 28.4 NmDiameter 105 mm
QTR 105 series
Large inner diameter with flat design
Tu 1.24 - 10.91 NmDiameter 78 mm
QTR 78 series
Small build-space and a large 29 mm inner diameter
Tu 0.64 - 5.53 NmDiameter 65 mm
QTR 65 series
Compact sizing and low-voltage support
Fu 89 - 177 NFc 40 - 72 N
TD36 series
Unmatched small package
Fu 211 - 845 NFc 106 - 426 N
TD55 series
Unique low build height
Fu 453 - 1811 NFc 262 - 1048 N
TD82 series
Maximum stroke, Maximum force density
Fu 141 - 7742 NFc 71 - 3441 N
TxX series
Higher acceleration and improved efficiency
Fu 120 - 720 NFc 60 - 360 N
TM series
Compact iron core motors for low cost of ownership
Fu 450 - 3600 NFc 200 - 1600 N
TL series
For high acceleration, speed and accuracy
Fu 1800 - 4500 NFc 760 - 1900 N
TB series
Takes your application to a new level
Fu 2700 - 6750 NFc 1140 - 2850 N
TBW series
Water cooled to reach even higher continuous forces
Fu 2.7 - 16.8 NFc 1.4 - 8.7 N
Unano series
Minimal Space. Maximum Impact.
Fu 36 - 72 NFc 10 - 20 N
UC series
Small but ready to do its job
Fu 42.5 - 85 NFc 19.5 - 39 N
UF series
High continuous force for application with high duty cycles
Fu 100 - 400 NFc 28 - 113 N
UM series
Compact but unique for high precision applications
Fu 240 - 1200 NFc 70 - 350 N
UL series
Ultimate speed and accuracy where precision counts
Fu 615 - 3690 NFc 120 - 720 N
UXA series
Efficient and ready for heavy duty application
Fu 700 - 4200 NFc 141 - 846 N

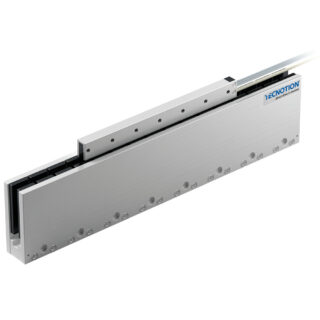

UXX series
Most robust for maximum force output with ultra precision
Fu 100 - 401 NFc 22 - 87 N
Vacuum UMV – G2 series
High positioning accuracy and repeatability
Fu 720 - 720 NFc 164 - 165 N
Vacuum ULV – G2 series
High acceleration and dynamics
Fu 1340 - 4020 NFc 233 - 698 N
Vacuum UXXV – G2 series
Efficient and with high motor constant
