Iron core motor | Brochure | 1.3
TD36 series
Unmatched small package
Experience the benefits of true iron-core performance in the smallest possible footprint.

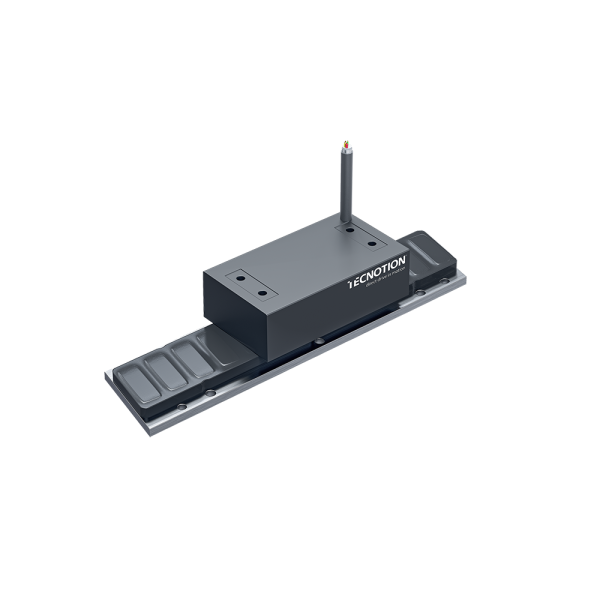

Iron core motor TD36 series
Use iron core performance in places you never thought it would not fit. Our miniature motor brings the benefits of iron-core technology to extremely space-restricted designs, ideal for systems where space is critical and performance cannot be compromised.
With 40N in just 24.8 mm x 36 mm, it enables compact and light-weight system integration.
Build height 24,9 mm | Coil unit width 36 mm
Force

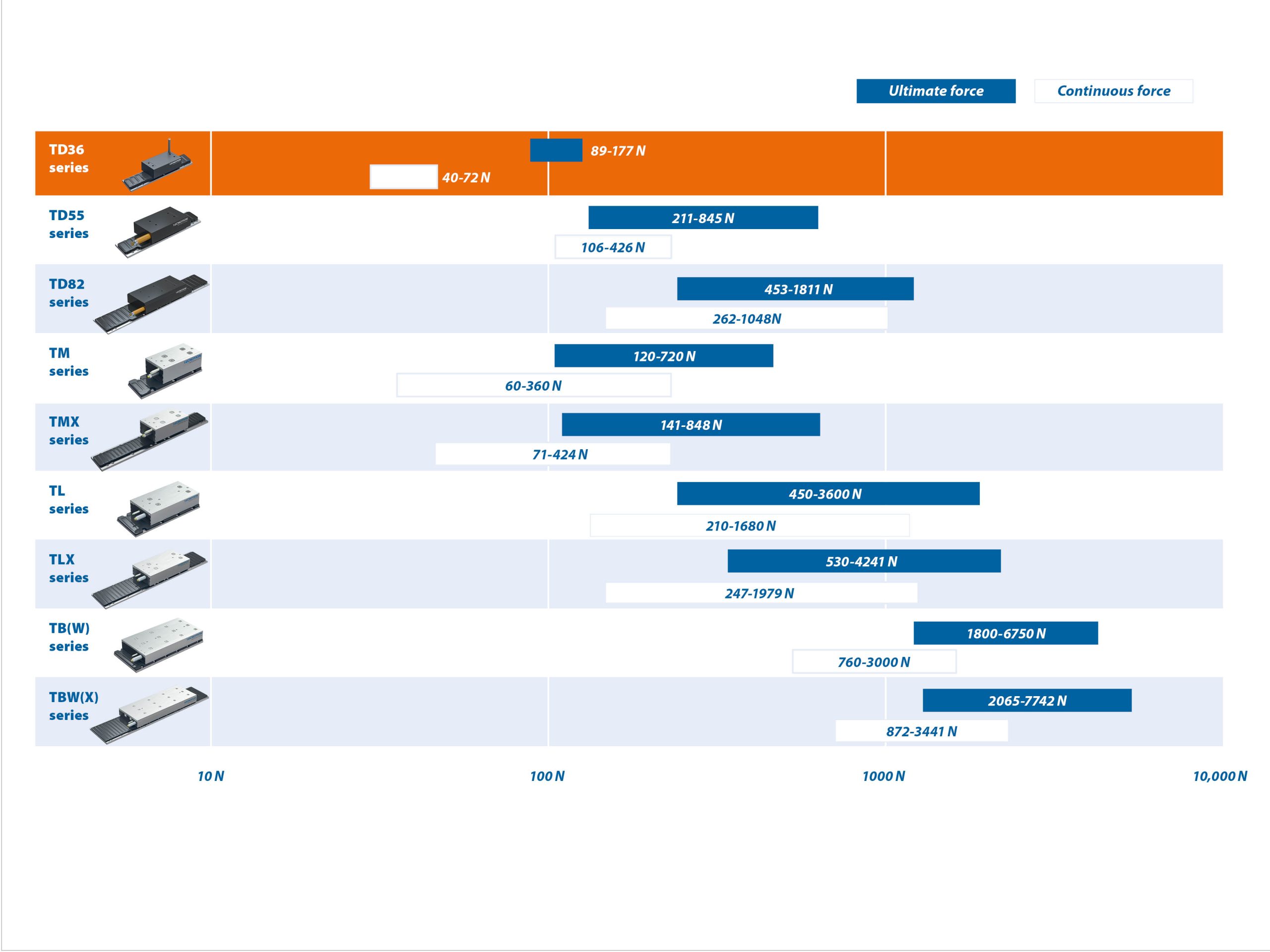

Ultimate force: 89 – 177 N
Peak force: 75 – 149 N
Continuous force: 40 – 72 N
Coil Units: TD36-3, TD36-6

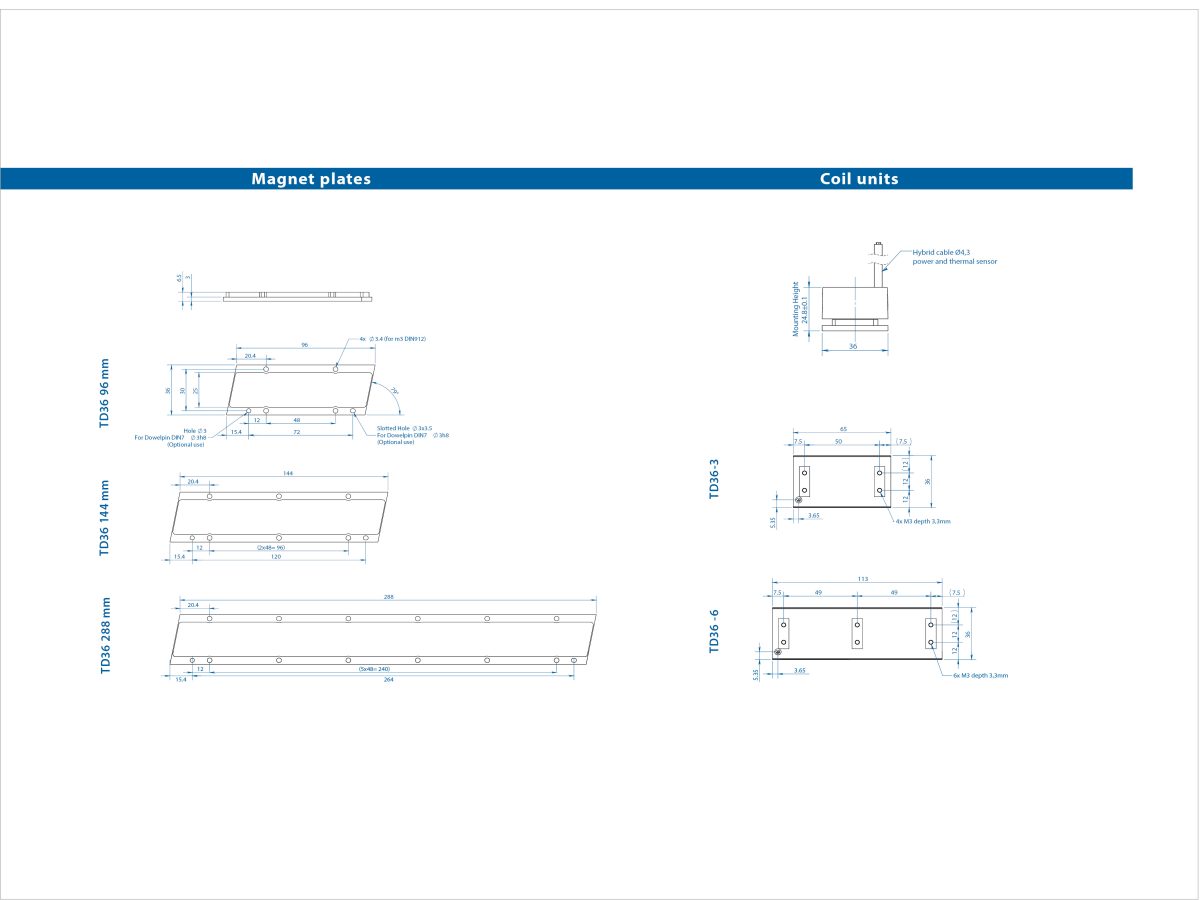

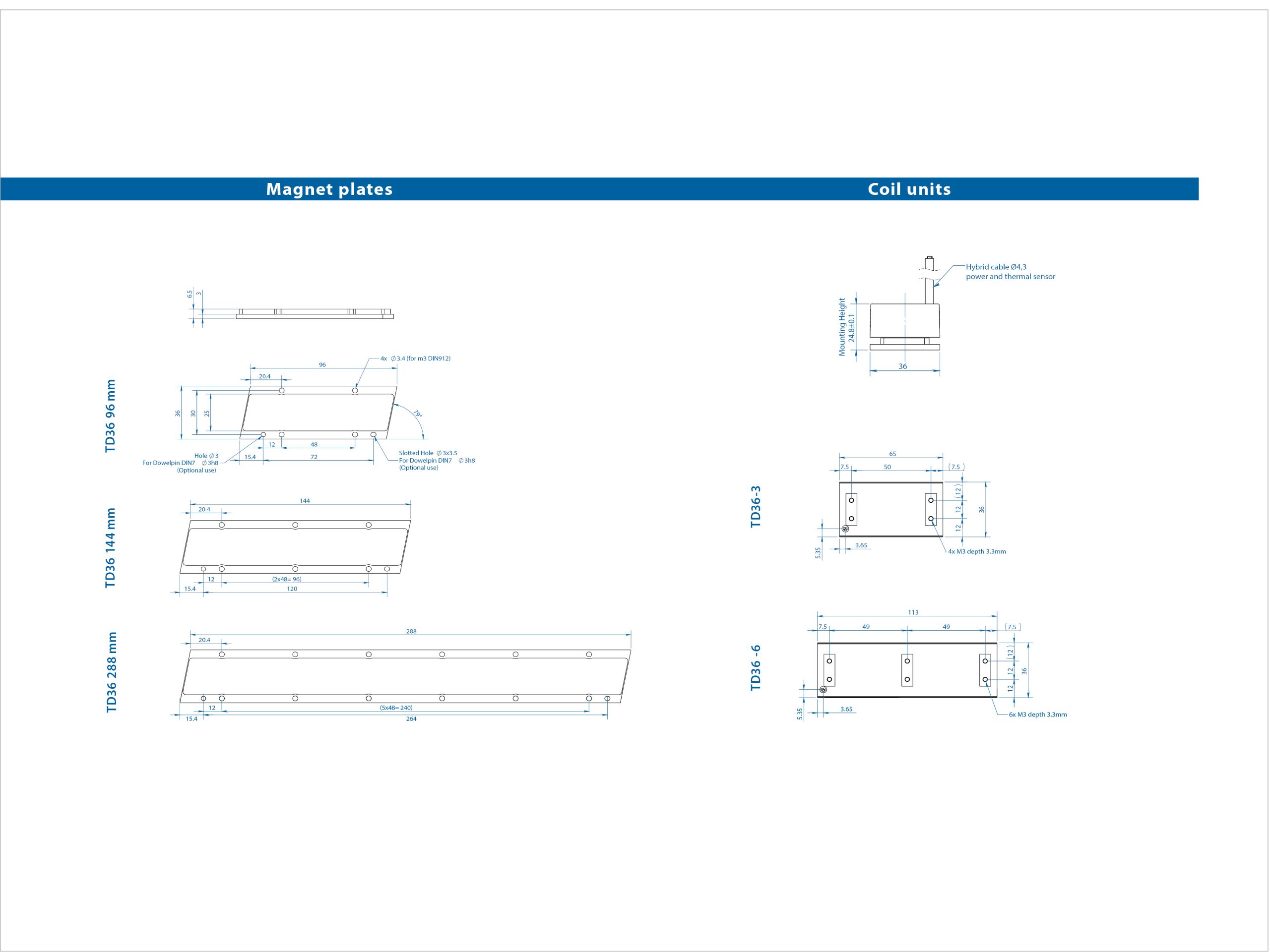

Magnet Plates: TD36-96, TD36-144, TD36-288

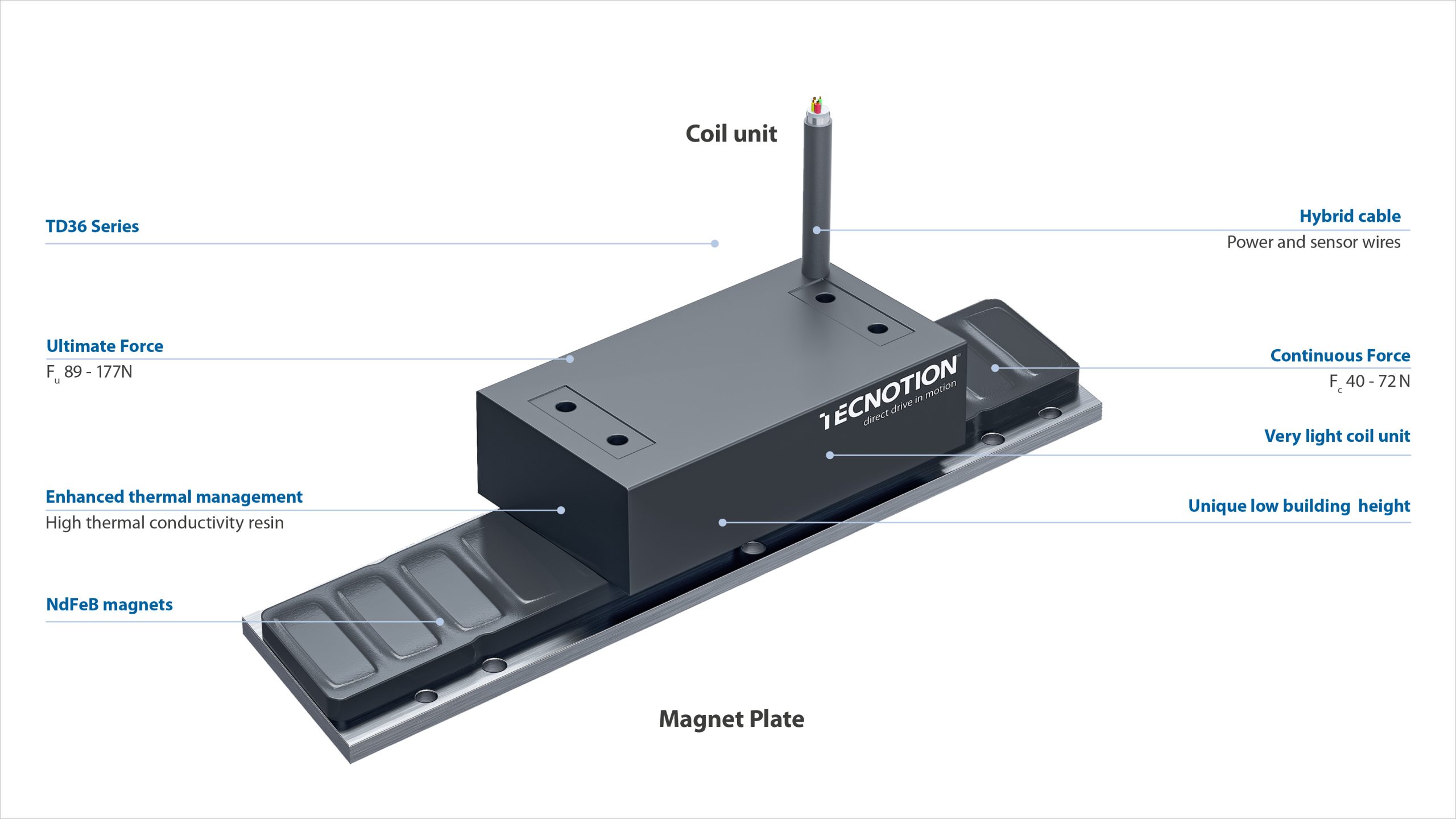

Properties

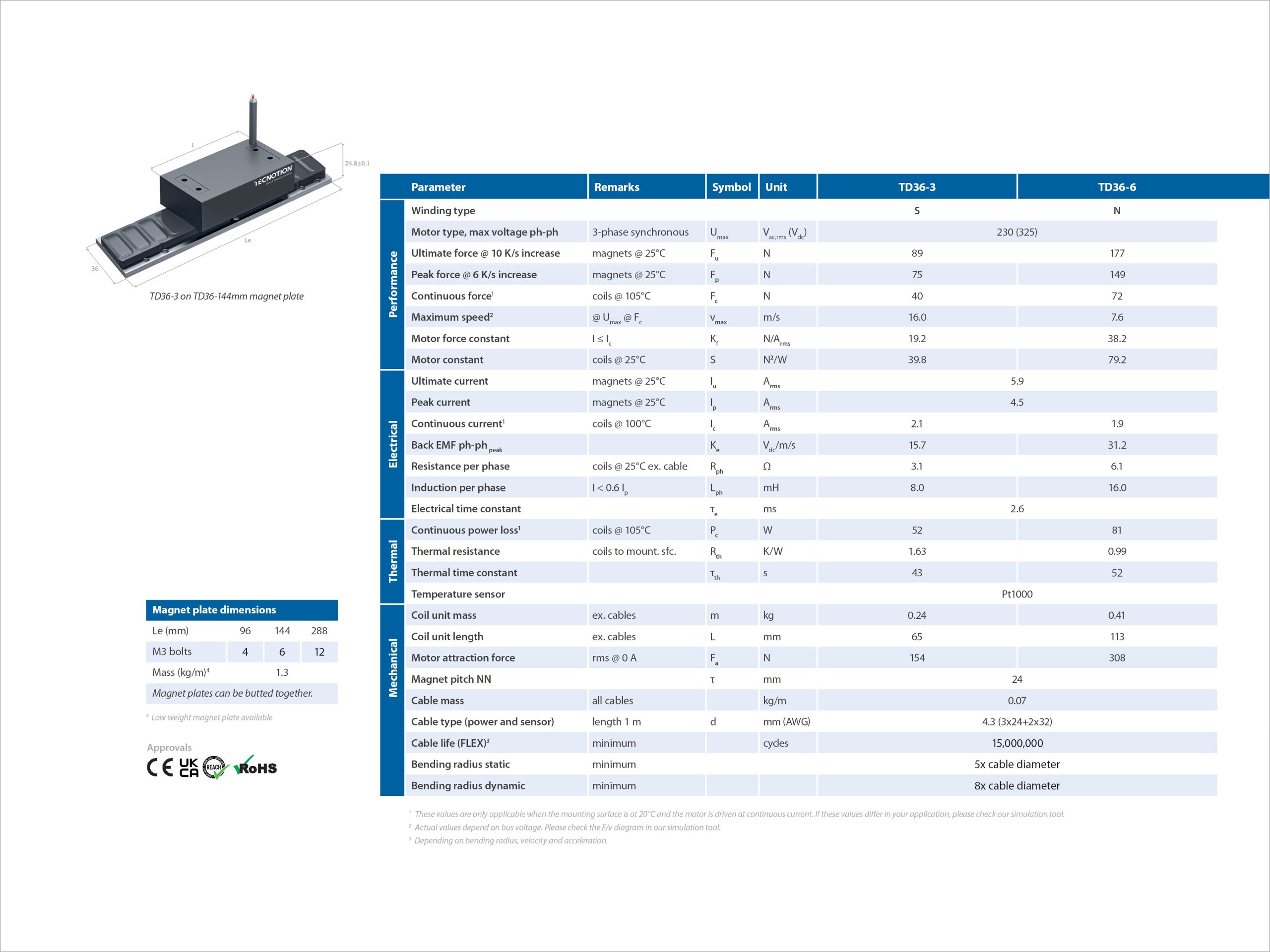

Specifications
Increase the available force of your machine
Coupling of iron core motors
Resources
Iron core motor | Leaflet | version 1.0
Iron core motor | Spec sheet | 1.3
Iron core motor | Manual | 2.2
Iron core motor | CAD file | 1.2
