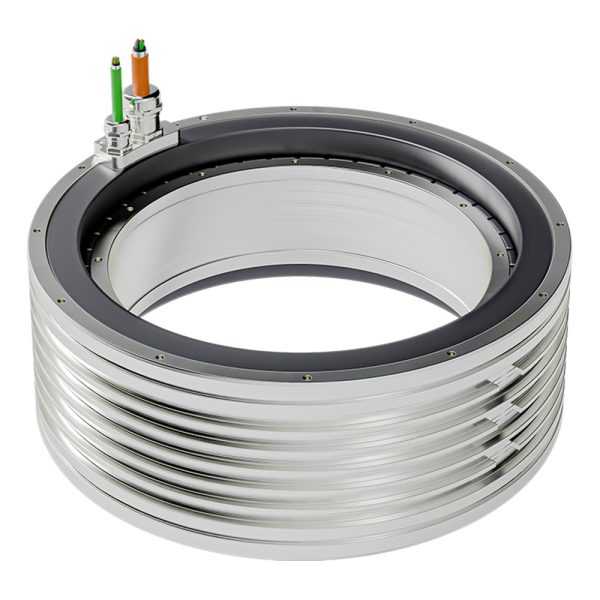

QMT-LA 310 SERIE
The 310 series is one of the most widely used motor series because it is suitable for many applications, from cutting and grinding to metrology and indexing tables.
Its high efficiency keeps cooling demand low, making it ideal as a direct replacement in existing machines. With this upgrade, you can achieve up to 14% more torque without redesigning your system.
Torque
Ultimate torque: 347 – 1162 Nm
Peak torque: 305 – 1032 Nm
Continuous torque:153 – 605 Nm

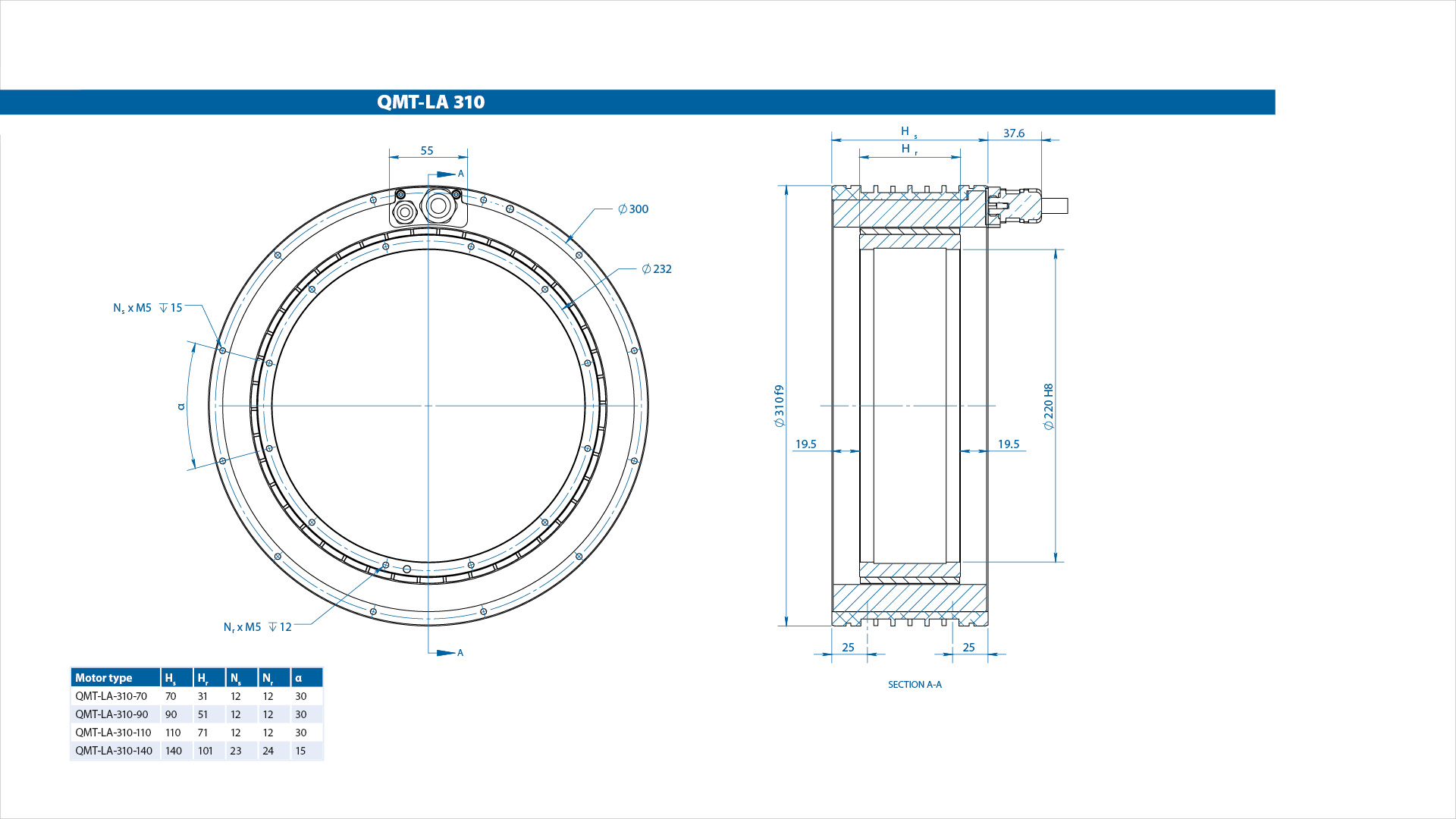

The build heights are: 310-70 // 310-90 // 310-110 // 310-140
Properties

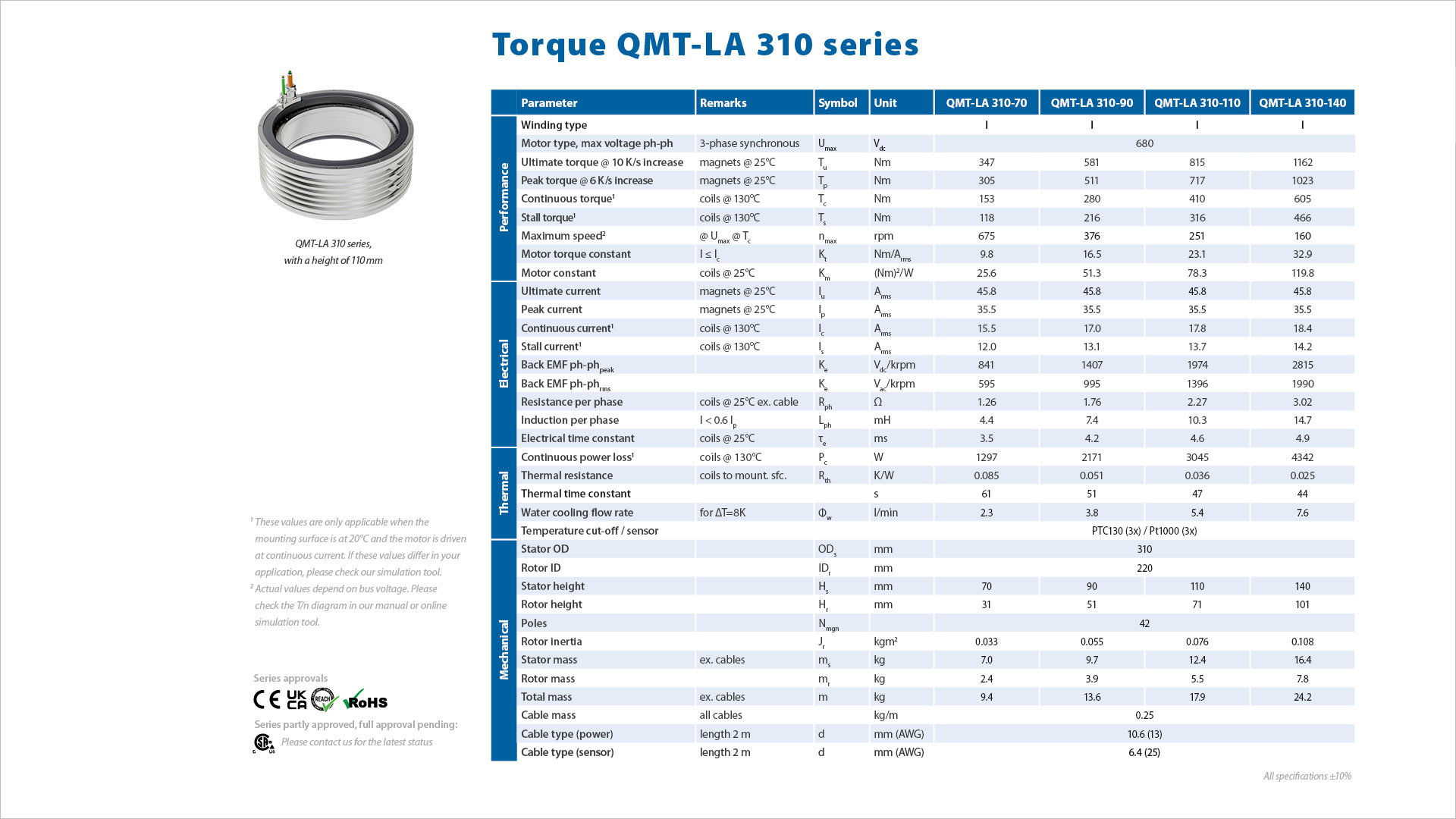

Specifications
Peak force applications in machinetooling
Where QMT motors are superior in stall torque, the QTL motors are big in peak force. In addition, the QTL motor series have a low weight and a larger inner diameter.
