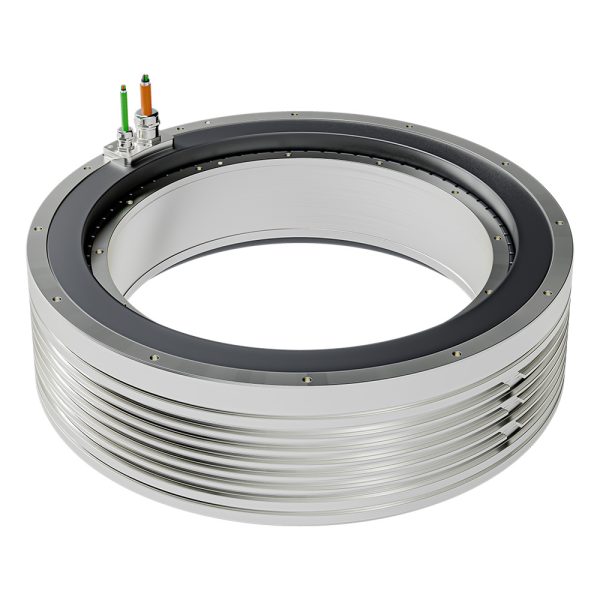

QMT-HA 485 SERIES
With it’s unmatched performance, Tecnotion’s largest high-torque motor enables more accuracy or increases machine productivity. The largest Torque QMT-HA 485 series sets the new benchmark,
delivering up to 80% more performance with the same stator and rotor footprint. The higher rotor combined with larger coils inside, gives a enormous torque increase without any need of design changes.
Torque QMT-HA 485 series
Ultimate torque: 1792 – 4307 Nm
Peak torque: 1587 – 3812 Nm
Continuous torque: 774 – 2028 Nm

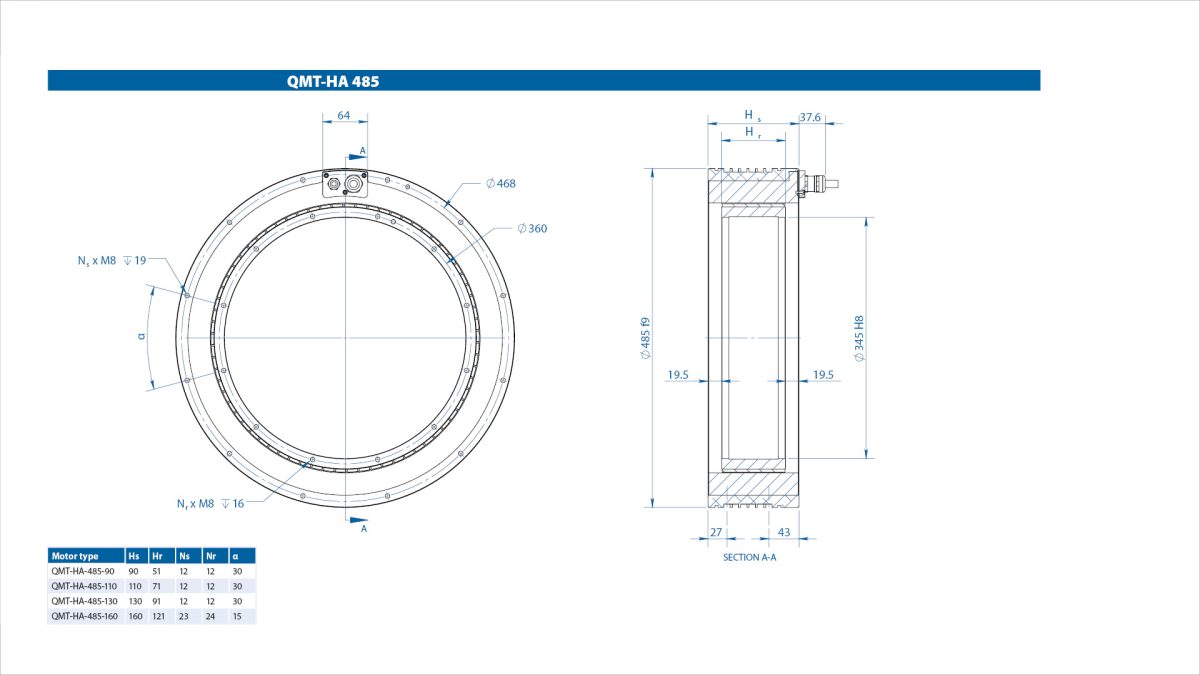

The build heights are: 485-90 // 485-110 // 485-130 // 485-160
Properties

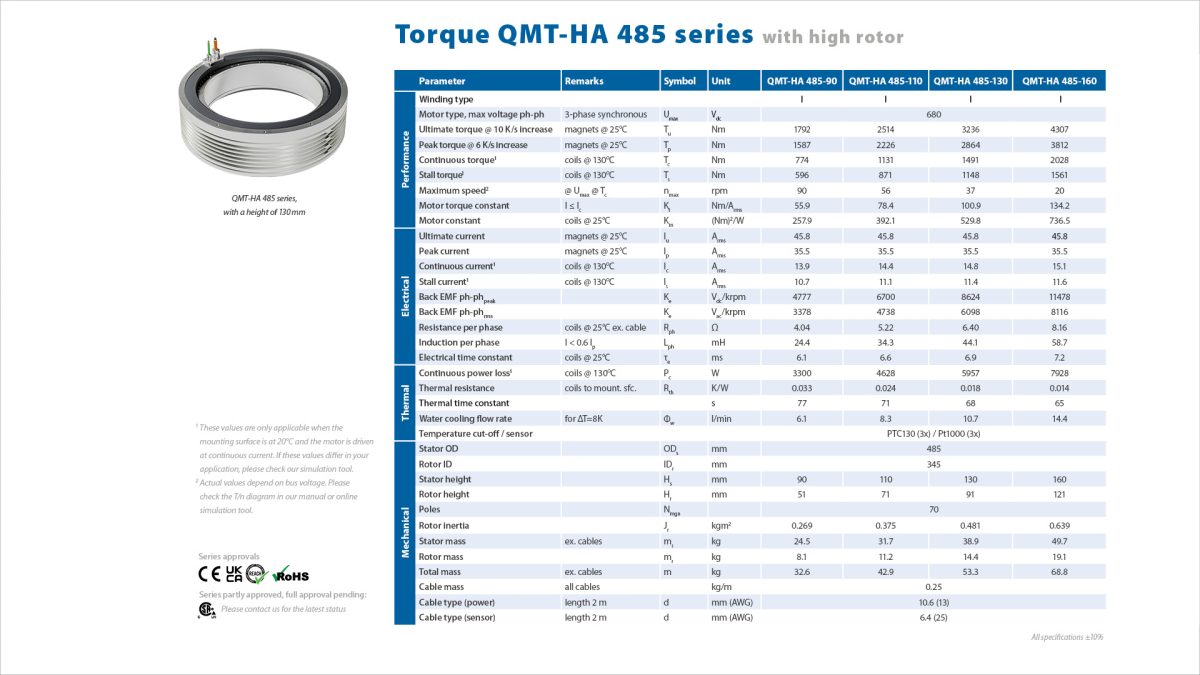

Specifications
Peak force applications in machinetooling
Where QMT motors are superior in stall torque, the QTL motors are big in peak force. In addition, the QTL motor series have a low weight and a larger inner diameter.
