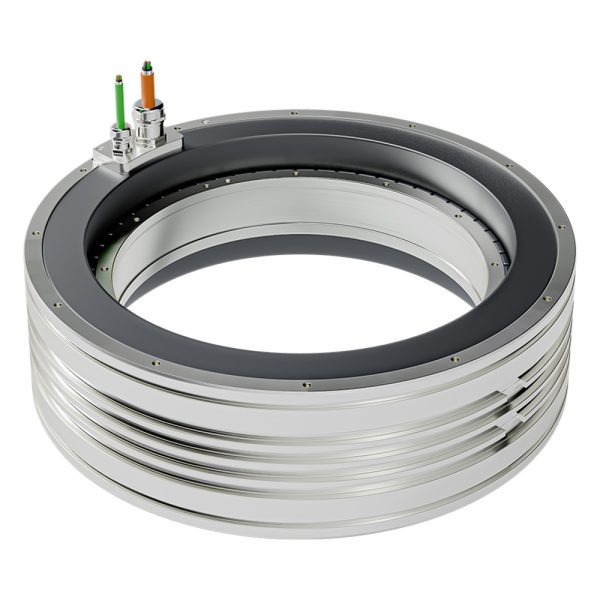

QMT-LA 385 SERIES
The QMT-LA 385 delivers up to 15% more performance in both continuous torque and efficiency, without changing the mounting interface. It raises the standard for torque density in its class.
Looking beyond 15%? The QMT-HA 385, with its higher rotor design, takes performance even to the next level.
Torque
Ultimate torque: 680 – 2229 Nm
Peak torque: 602 – 1973 Nm
Continuous torque: 273 – 1036 Nm

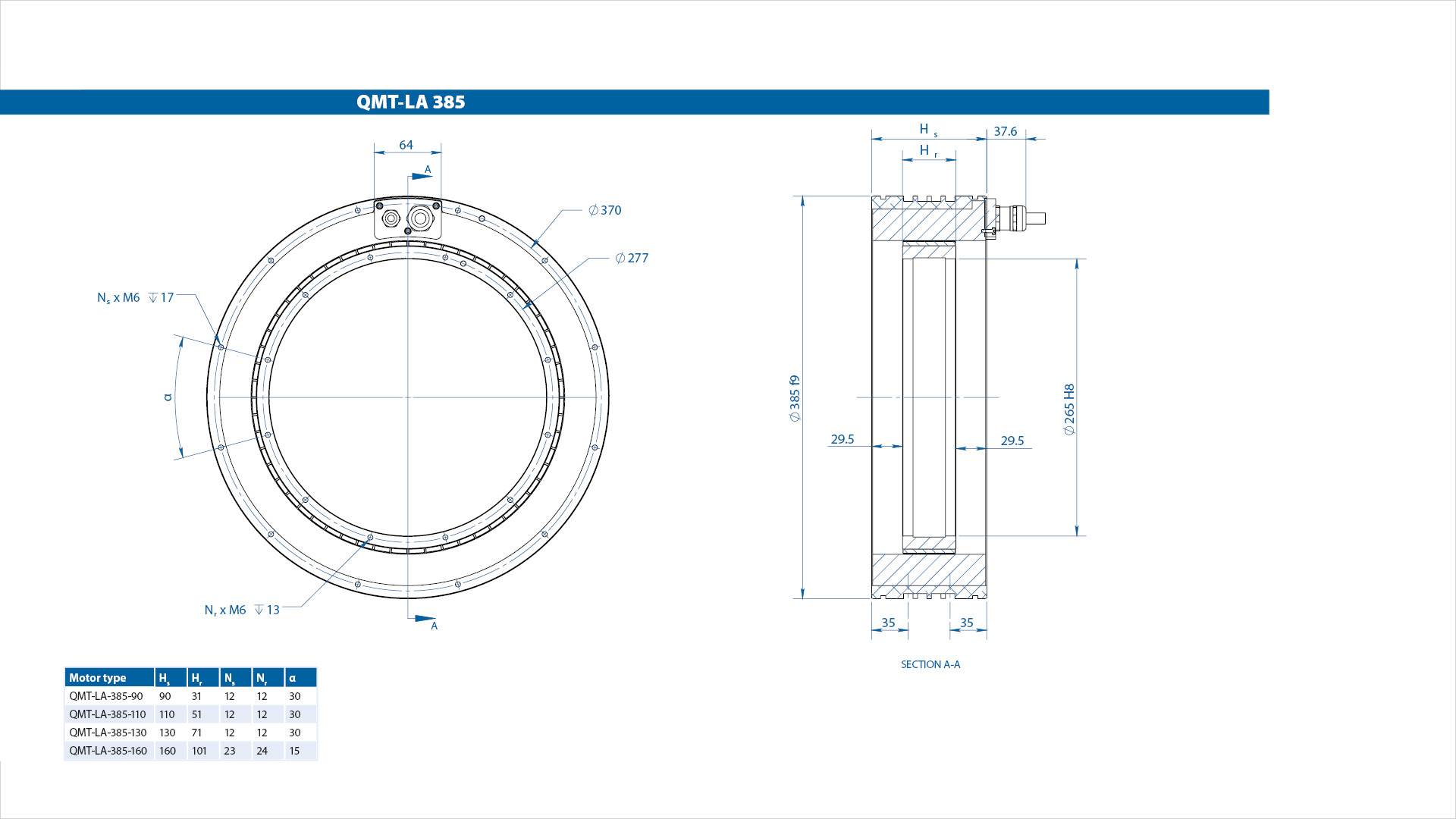

The build heights are: 385-90 // 385-110 // 385-130 // 385-160
Properties

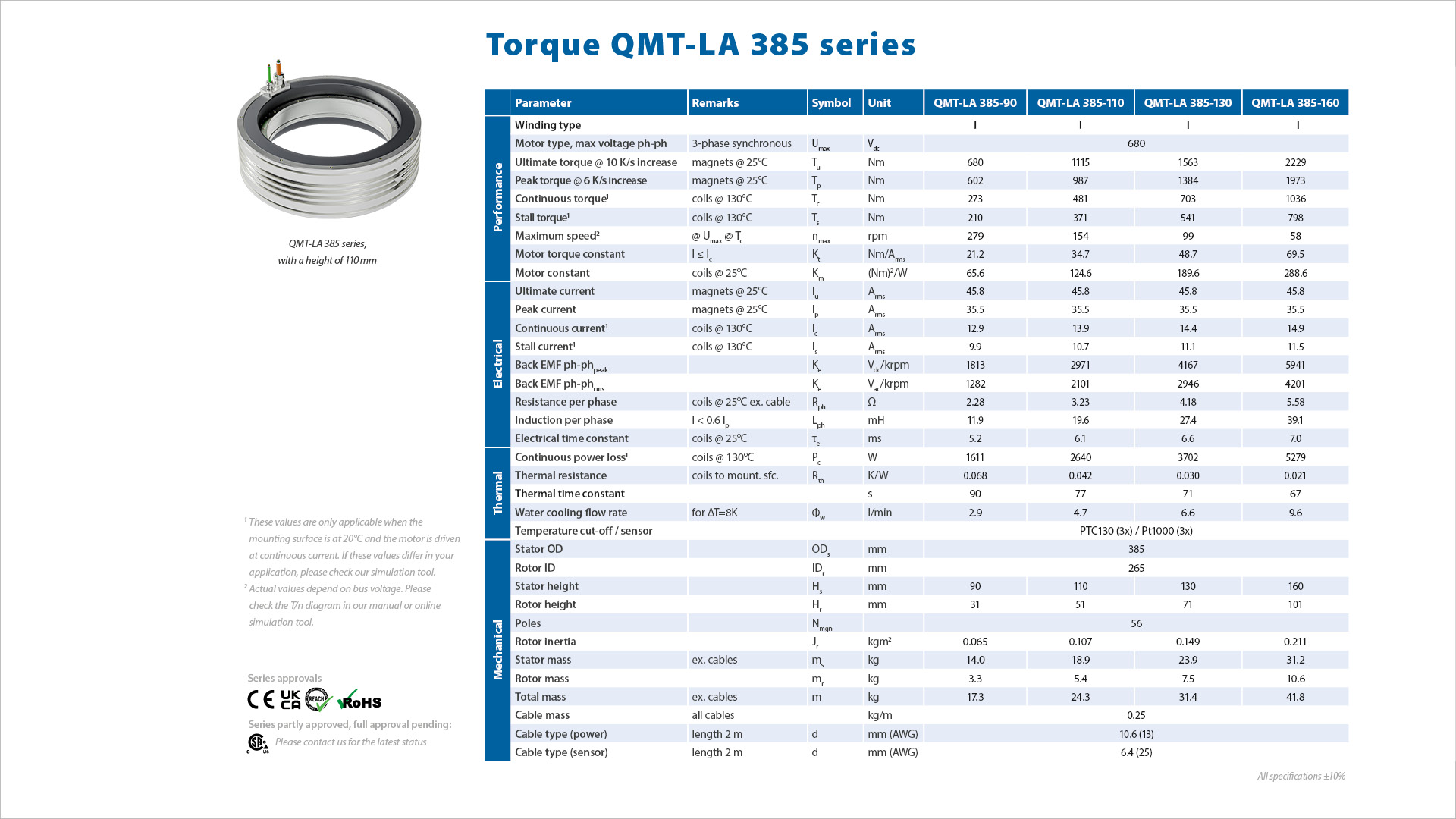

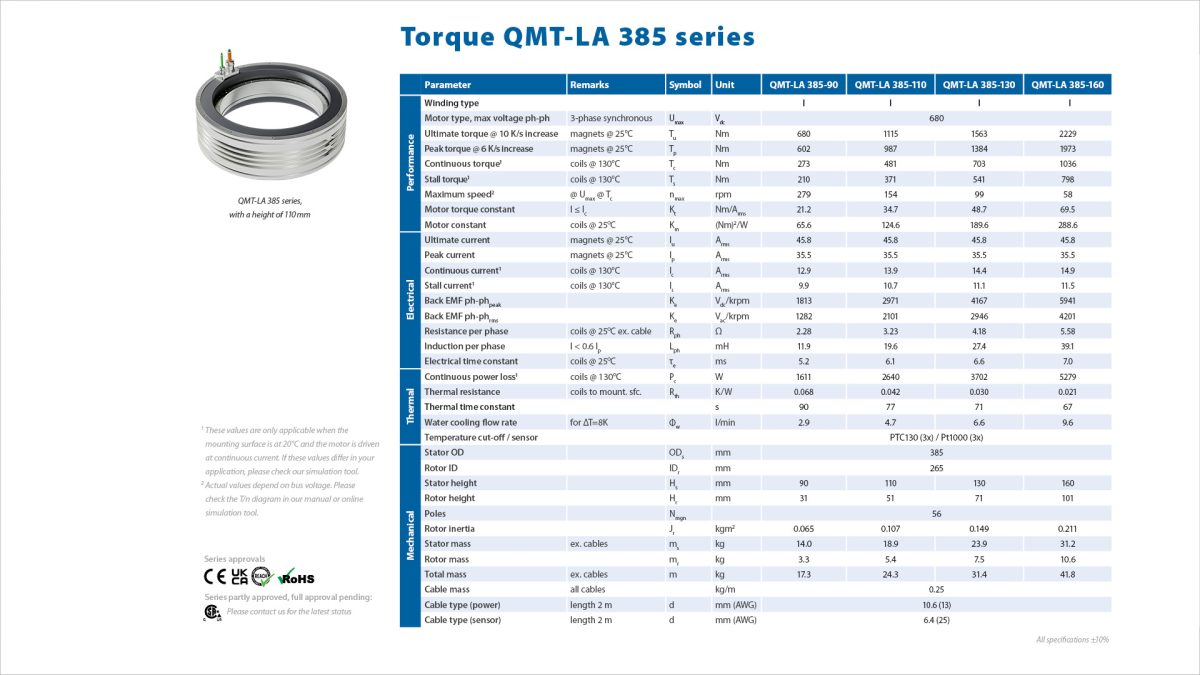

Specifications
Peak force applications in machinetooling
Where QMT motors are superior in stall torque, the QTL motors are big in peak force. In addition, the QTL motor series have a low weight and a larger inner diameter.
