ULV – G2 series
High acceleration and dynamics
Ideal for applications that demand peak force or low heat output.
Vacuum ULV - G2 series
The Vacuum ULV – G2 series is the medium-size series in the high-end vacuum-rated linear motor series. They are commonly used for applications demanding peak force or low heat output.
Such as in lithography and inspection solutions. In longer strokes, ULV – G2 coils can be combined to save magnet material but still achieve high performance.

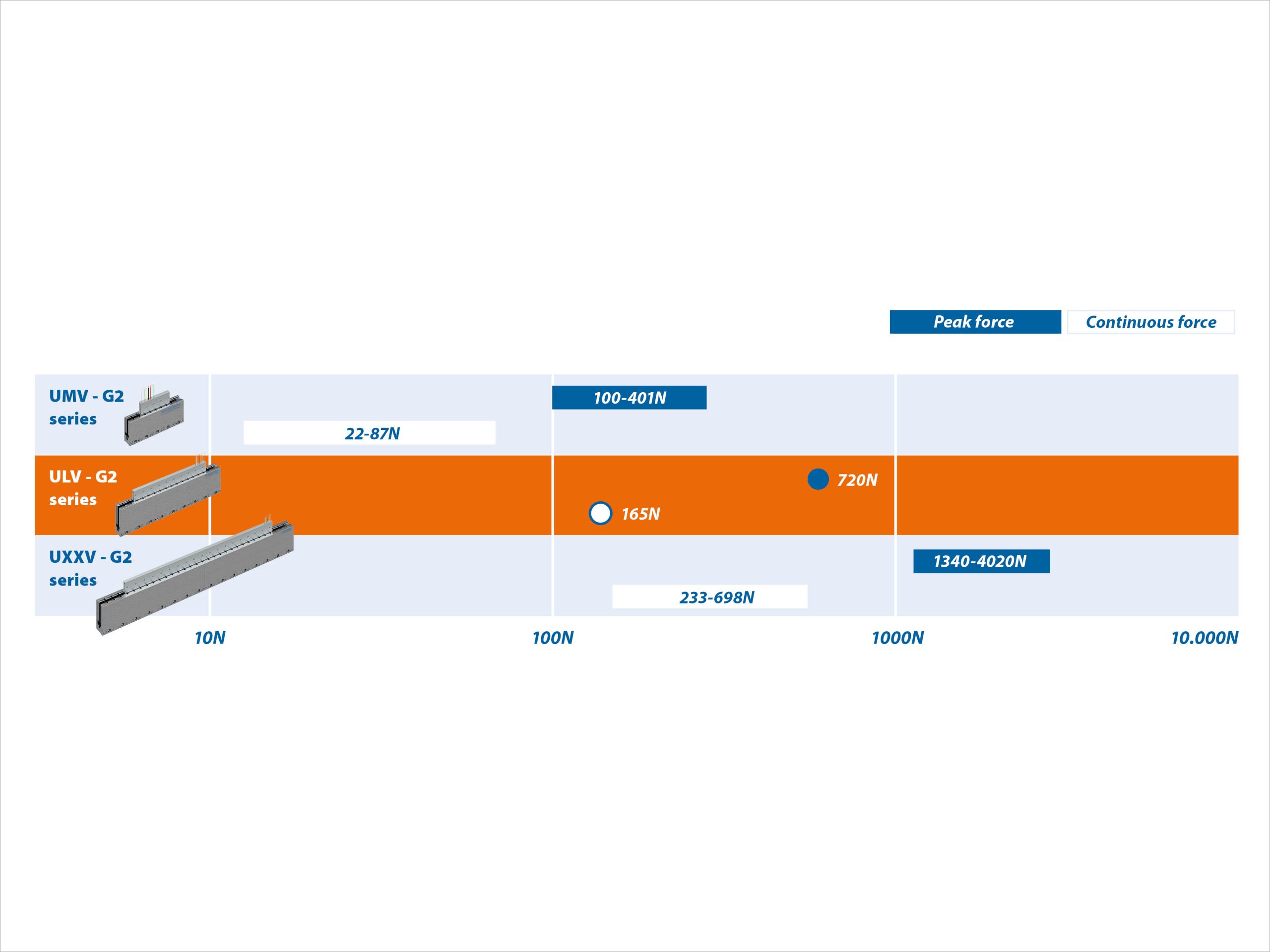

Force
Peak force: 720 N
Continuous force: 165 N
Coil units: ULV9 G2 N-Winding, ULV9 G2 S-Winding
Magnet yokes: ULV 126mm, ULV 420mm
The new benchmark in vacuum motors
This video introduces the vacuum generation 2 motors of Tecnotion.

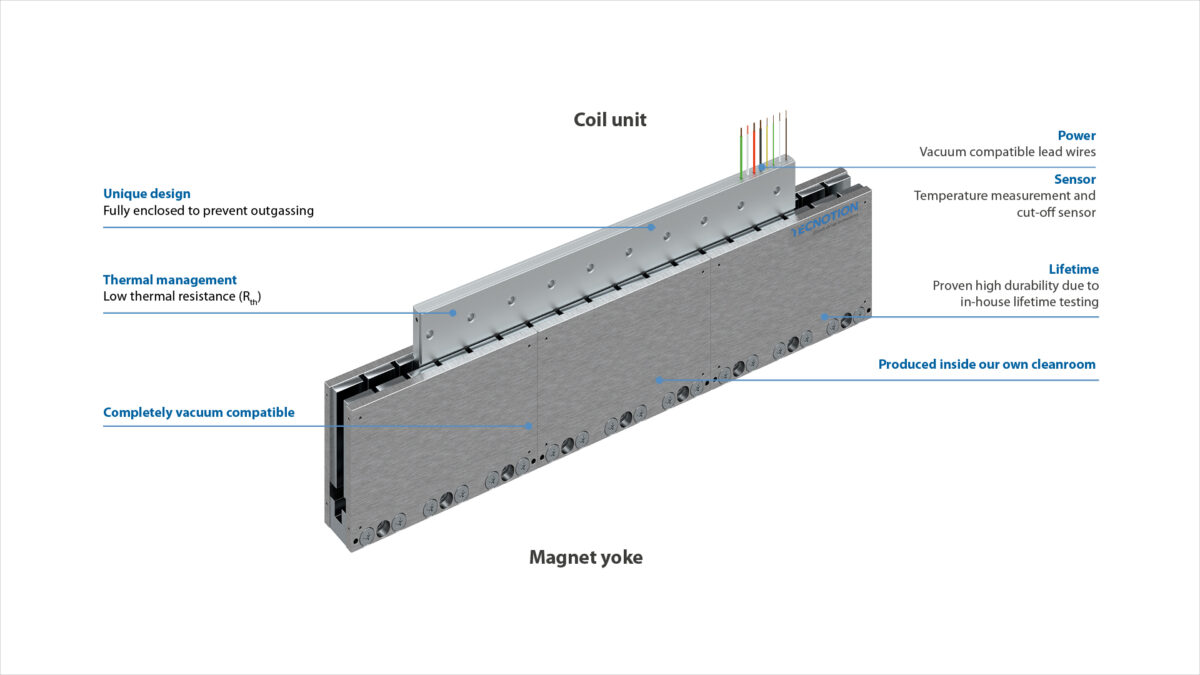

Properties

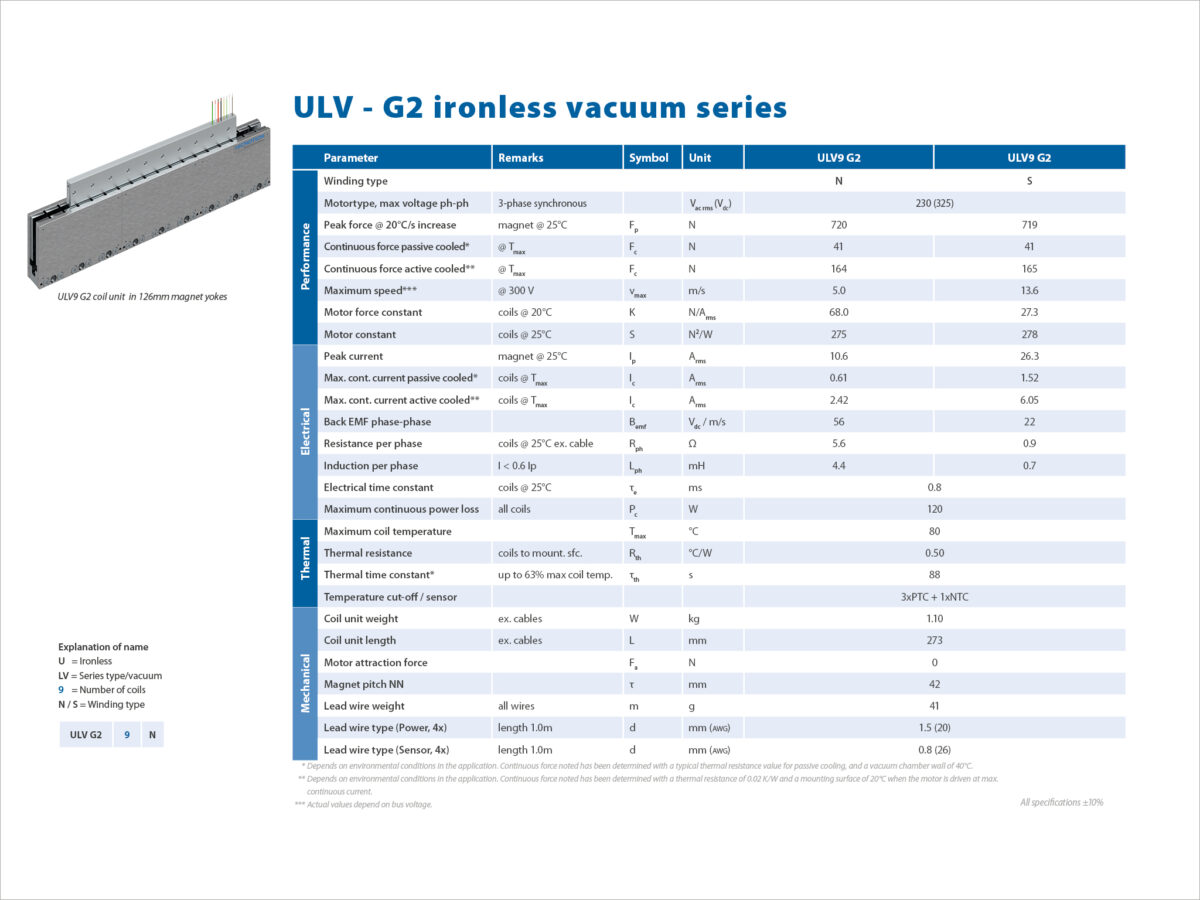

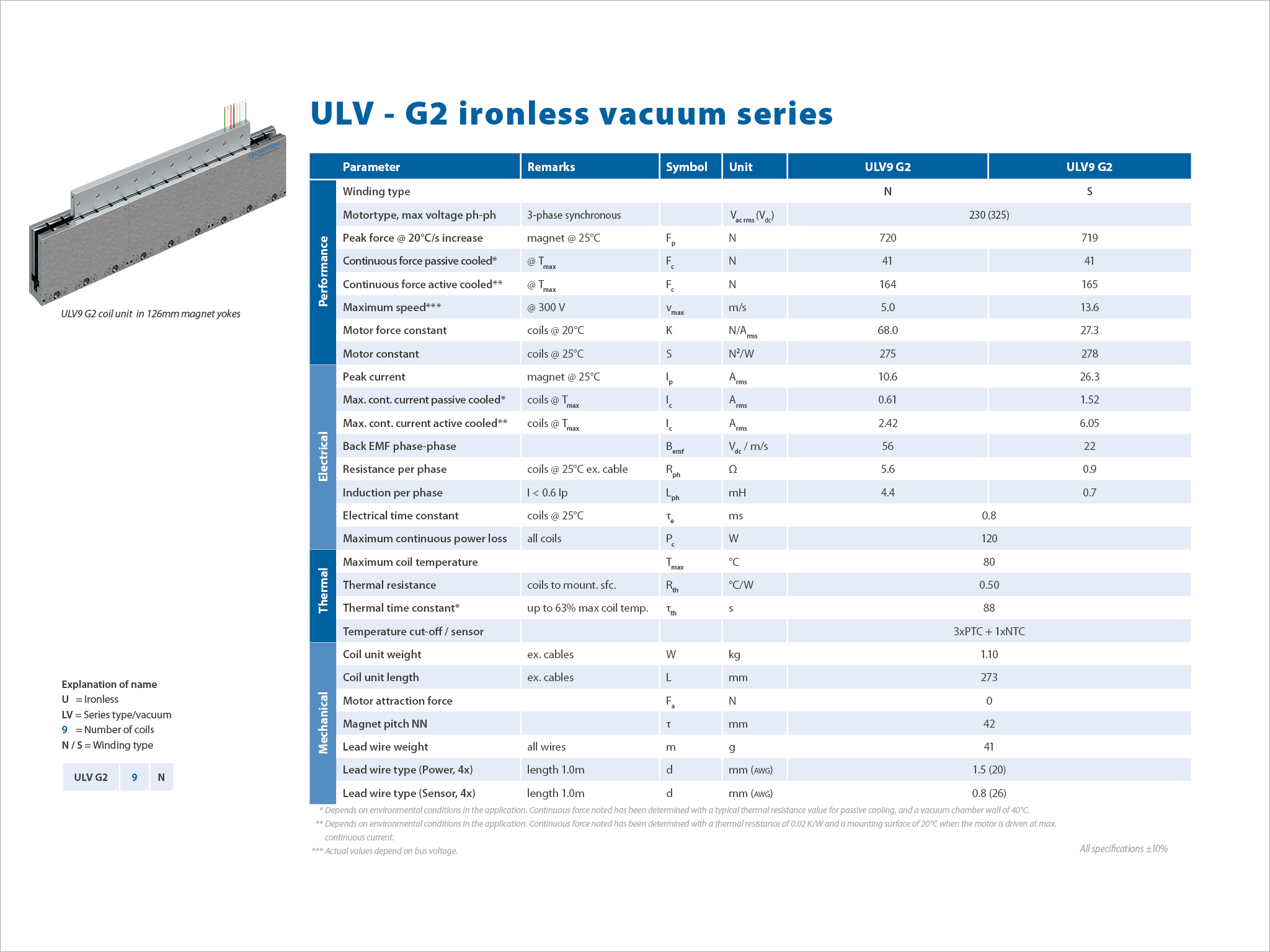

Specifications
Resources
Vacuum motor | Brochure | 1.5
Ironless motor | Webinar | Version 1.0
Vacuum motor | Webinar | Version 1.0

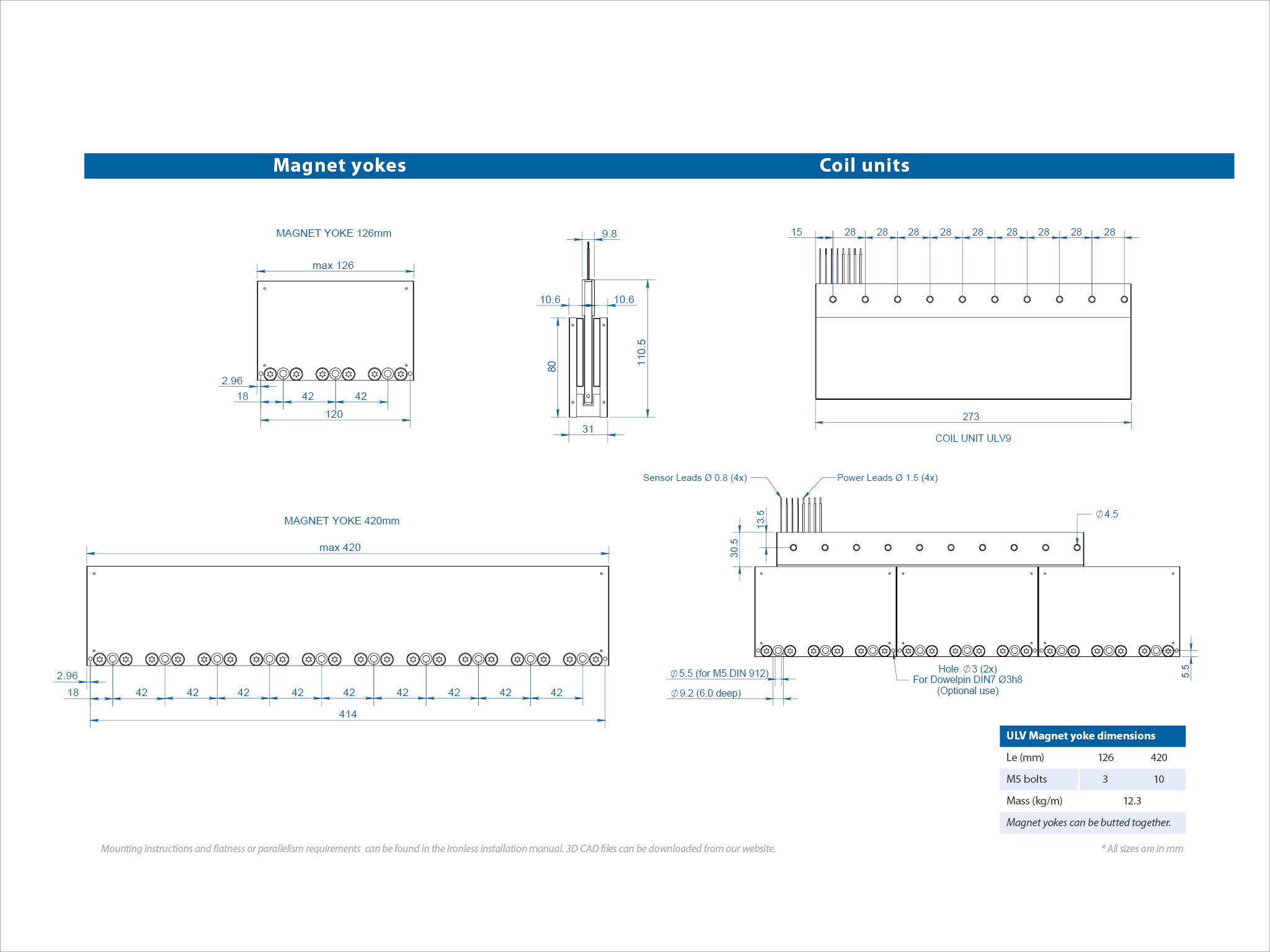

Vacuum motor | CAD file | version 1.1
Vacuum motor | Spec sheet | 1.4
Applications
Tecnotion direct drive motors are seamlessly integrated into a wide variety of applications, such as semi-conductors, machine tooling, robotics, display applications and printing industry. We direct drive your motion technology.
