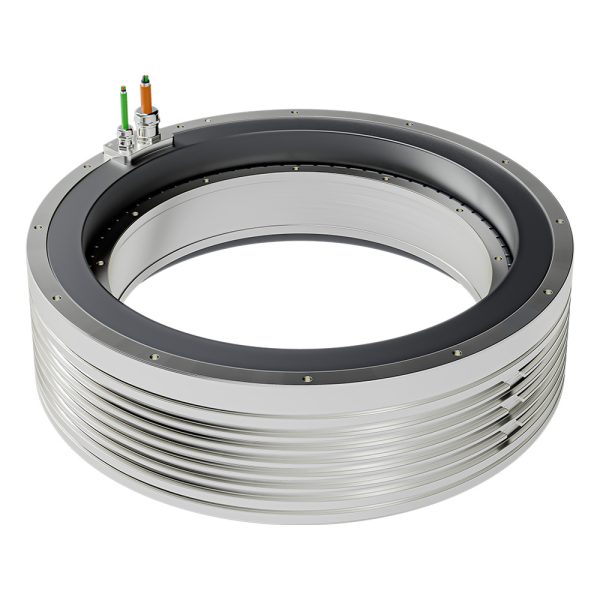

QMT-LA 485 SERIES
As the largest size in the QMT portfolio, the QMT-LA 485 boosts both continuous torque and efficiency by up to 15%, all while keeping the same mounting interface. Thanks to its aluminum housing, this powerhouse is lighter than expected.
This low weight makes installation easier and reduces the overall impact on your machine.
When 15% isn’t enough, the QMT-HA 485 pushes performance further thanks to it’s high-torque rotor design.
Torque
Ultimate torque: 1094 – 3585 Nm
Peak torque: 696 – 3174 Nm
Continuous torque: 439 – 1666 Nm

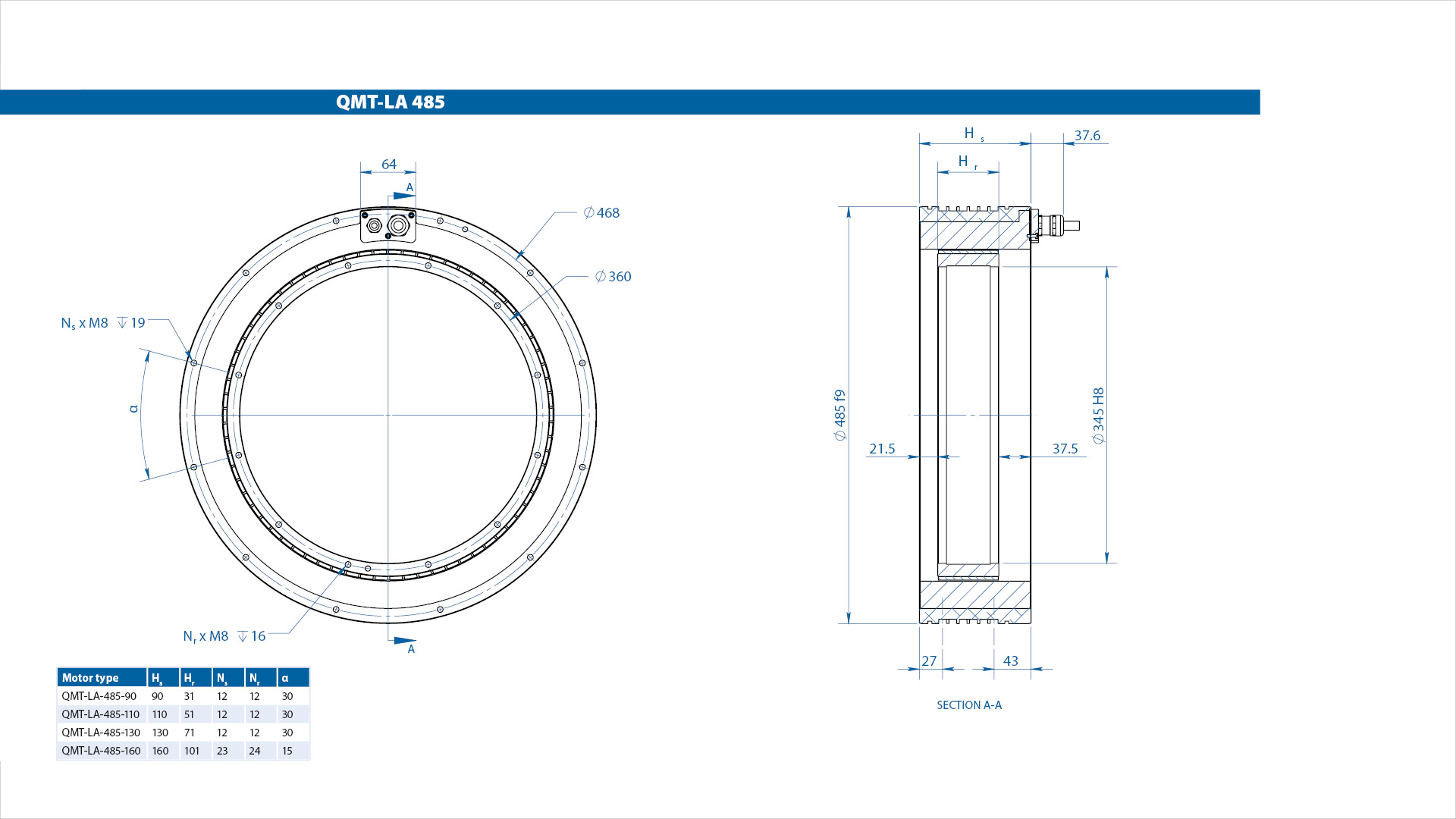

The build heights are:485-90 // 485-110 // 485-130 // 485-160
Properties

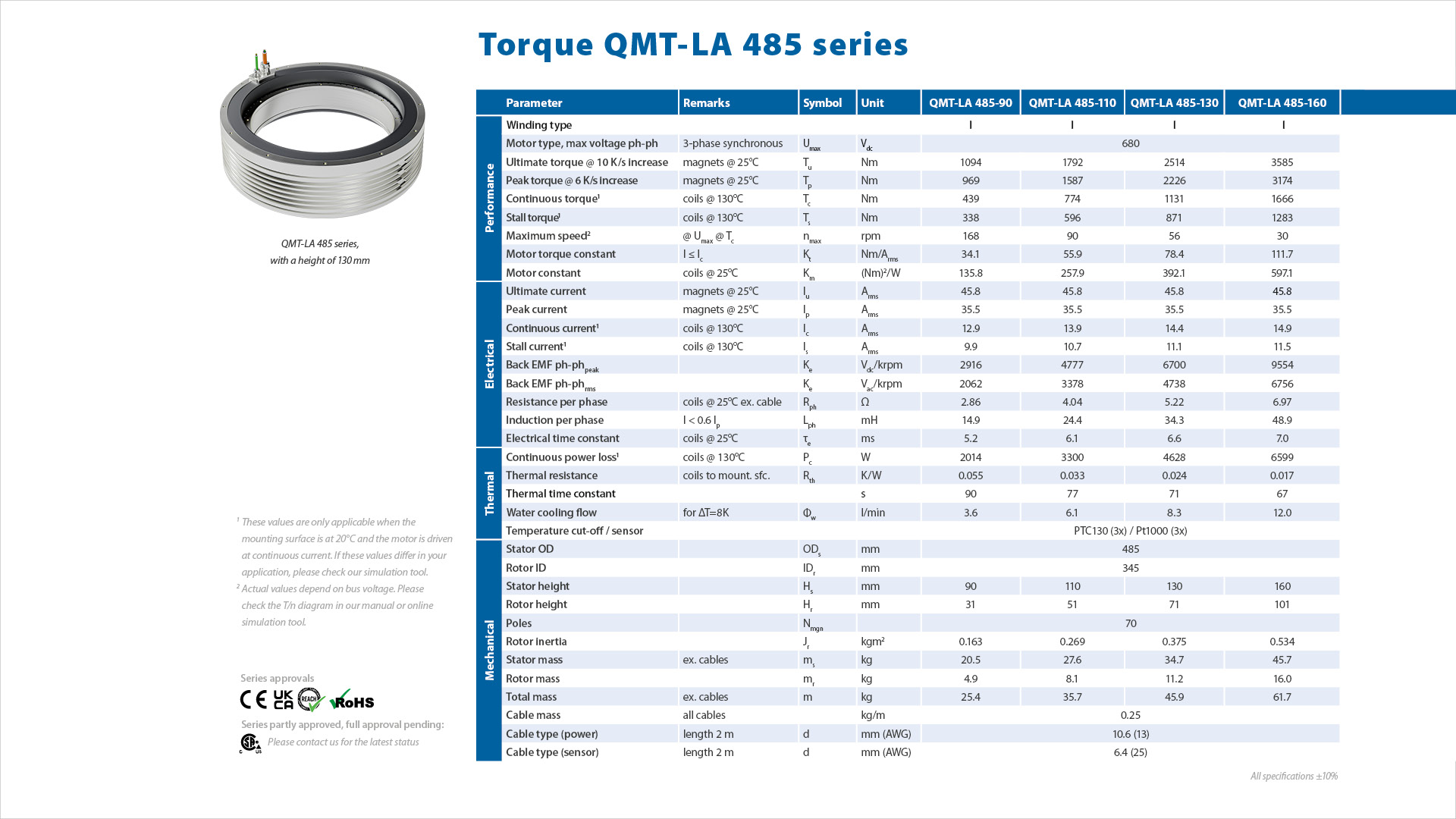

Specifications
Unleash the power with QMT torque motors
This motor series is designed for the machine tooling market and combines excellent mechanical compatibility with a synergy of power and precision. Superior in stall torque, QMT motors are particularly well-suited for demanding applications.
